Tool Guides · 2026-08-27 · 10 min

How to View an IFC on a 3D Map: Georeferenced BIM in the Browser

Open a real IFC4 pavilion in its Barcelona map context, inspect the live 3D demo, and learn how IfcProjectedCRS and IfcMapConversion place BIM correctly.

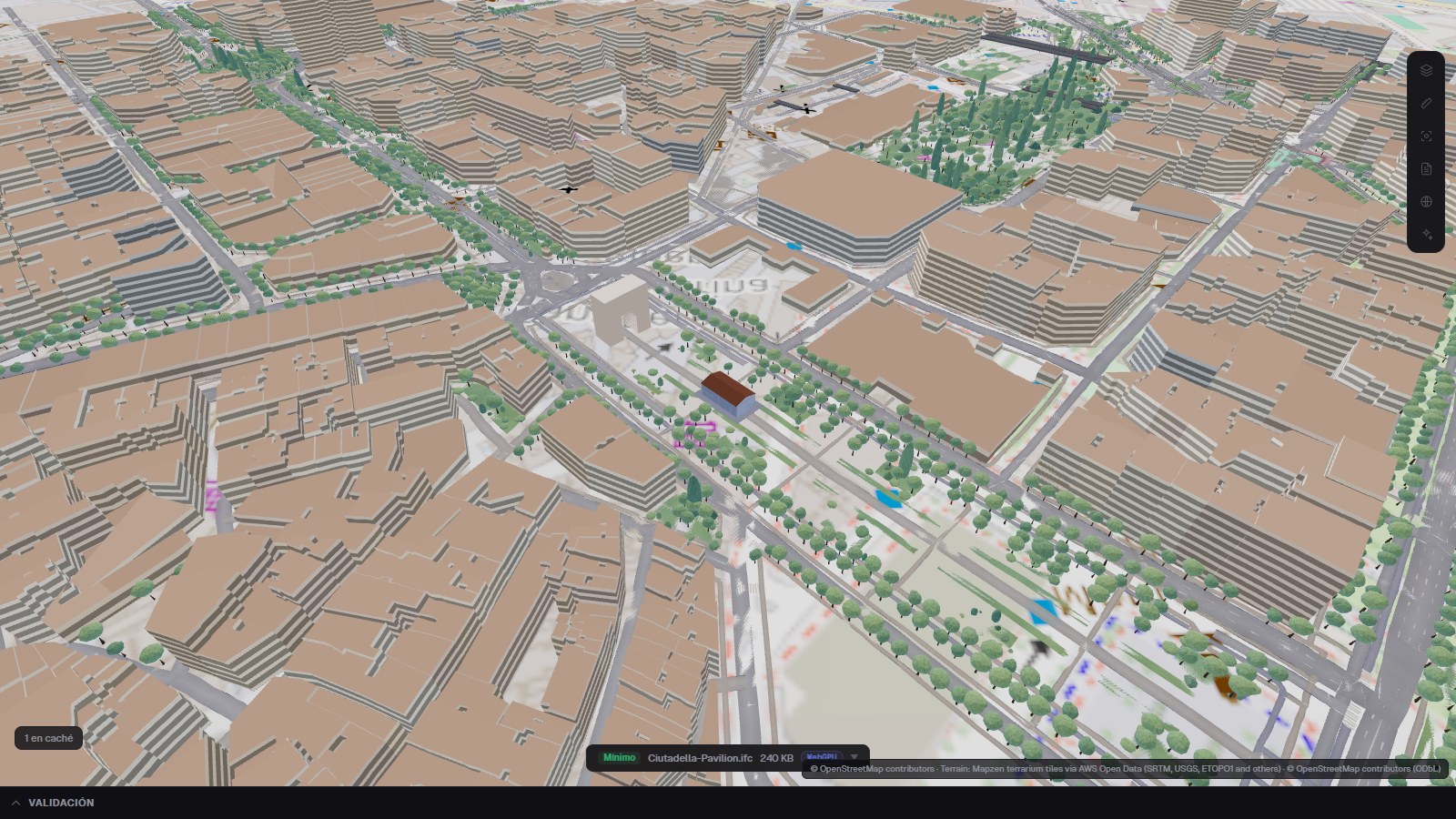

Actual IFC Viewer Online capture showing the georeferenced Ciutadella Pavilion inside a detailed 3D map of Barcelona

Yes: you can view an IFC on a 3D map directly in the browser. The useful version of that sentence is not “put a building near a pin”; it is “read the model coordinate reference system, preserve the engineering geometry, and align terrain plus GIS context around it”. The live example below does exactly that with a small IFC4 pavilion in Barcelona.

4 — IFC schema
240 KB — example file
137 — model elements
EPSG:25831 — projected CRS

Actual IFC Viewer Online map mode with the small Ciutadella Pavilion highlighted among extruded Barcelona buildings, tree-lined avenues and terrain — Actual product capture from the reproducible deep link. The pavilion is the authored IFC; the city, terrain and trees are surrounding map context.

Try the IFC + 3D Map Demo

Start the example to load the bundled IFC locally and then request its 3D site context. Orbit, zoom and open the full viewer if you want the complete map controls. External map services can take a few seconds to stream terrain and surrounding features.

Ciutadella Pavilion — georeferenced IFC on a 3D map

A bundled 240 KB IFC4 model aligned automatically in Barcelona through EPSG:25831 and IfcMapConversion, with optional terrain and OpenStreetMap surroundings.

Actual IFC Viewer Online capture of the Ciutadella Pavilion loaded in Barcelona map mode — IFC and map are ready — drag to orbit

What Makes a Map Placement Trustworthy?

The official buildingSMART definition says IfcMapConversion transforms a local engineering coordinate system into the coordinate reference system of the map using scale, rotation and translation. IfcProjectedCRS identifies that map coordinate system. Those two pieces answer different questions and are both useful.

IFC information	Question it answers	Confidence in this workflow
IfcProjectedCRS	Which projected map grid and datum?	High when the EPSG definition is resolvable
IfcMapConversion	Where is the local origin, at what rotation, height and scale?	High for automatic placement
IfcSite RefLatitude / RefLongitude	Where is the site approximately?	Approximate fallback
Manual map pin	Where should an ungeoreferenced model be shown?	User-provided, not surveyed

Opening successfully is not evidence that an IFC is located correctly. The placement source must remain visible.

Diagram showing local IFC coordinates transformed by IfcProjectedCRS and IfcMapConversion into aligned terrain and 3D map context — The map aligns around the local model. Keeping geometry near the project origin avoids sacrificing rendering precision to very large global coordinates.

The Ciutadella File Is a Reproducible Test, Not a Mock-up

The example is intentionally small enough to inspect. It is a 24 × 12 m exhibition pavilion on a 4 × 6 m grid, with a foyer, mezzanine gallery, double-height hall, glazed façades and pitched standing-seam roof. Its role is to make placement errors obvious against a recognizable street axis.

IFC4 file: BCN-IVO-ZZ-XX-M3-Z-0003.ifc, 240 KB and 137 model elements.
Target CRS: EPSG:25831 — ETRS89 / UTM zone 31N.
Map origin: E 431543.18, N 4582439.59, orthogonal height 18.5 m.
Project X axis: (0.700909, −0.713250), which places the pavilion at roughly −45.5° to grid east.
Site: Passeig de Lluís Companys, about 80 m from the Arc de Triomf and oriented with the promenade rather than square to north.

#63=IFCPROJECTEDCRS('EPSG:25831', ...);
#64=IFCMAPCONVERSION(#10,#63,
  431543.18,4582439.59,18.5,
  0.7009092643,-0.7132504492,1.0);

The model and its Blender/Bonsai generation script are public, so the screenshot and live scene can be rebuilt instead of taken on trust.

What the 3D Map Adds to an IFC Viewer

Orientation you can verify

Street axes and neighbouring geometry reveal a wrong north angle immediately.

Terrain context

Relief gives the model a ground reference while a height offset handles datum differences explicitly.

Surrounding massing

OpenStreetMap buildings, water, parks, trees and bridges provide site context without becoming IFC elements.

Engineering coordinates preserved

The model remains in its local metre-based frame; the basemap moves into the scene rather than rewriting the IFC geometry.

Local IFC Privacy and Online Map Requests Are Separate

IFC processing

File bytes parsed in the browser
Geometry stays on the device
Local project coordinates preserved
Works without creating an account

Map context

Downloads tiles or terrain from the selected provider
Requests OpenStreetMap surroundings when enabled
Requires provider attribution
Needs network access and provider availability

OpenStreetMap requires visible credit and notice of its ODbL terms. The viewer keeps that attribution inside map captures; the official OpenStreetMap copyright page explains the requirement. Hiding the attribution to make a cleaner marketing image would make the image less trustworthy and non-compliant.

How to Put Your Own IFC on a 3D Map

Open the IFC in the browser and inspect its site and coordinate metadata before enabling map layers.
Open Map mode. If the file contains a resolvable projected CRS and map conversion, review the detected location, rotation and confidence.
If the file only contains site latitude/longitude, treat the result as approximate and compare it with known site control.
If no usable georeference exists, place the model manually and label that placement as user-provided rather than surveyed.
Enable terrain and surroundings one layer at a time, then verify the street axis, footprint, height and nearby landmarks.
Keep the attribution visible in screenshots, reports and client presentations.

The Visual Promise — and Its Limit

Conceptual editorial rendering of a translucent BIM building aligned over a Mediterranean city grid at sunset — Conceptual editorial illustration generated for this article. It communicates the IFC + GIS idea; it is not a product screenshot, survey or representation of the Ciutadella Pavilion.

A convincing 3D map is useful. A visible coordinate source, confidence level and reproducible model are what make it authoritative.
