Gemelos digitales · 2026-08-21 · 12 min

LiDAR en tiempo real + IFC: demo web con replay MCAP

Abre la interfaz real de replay y entiende los frames binarios, buffers acotados y telemetría de un flujo IFC + LiDAR claramente marcado como simulado.

LiDAR en tiempo real + IFC: demo web con replay MCAP — IFC Viewer Online

Un vídeo de una nube y un stream de puntos no son equivalentes. El stream conserva XYZ, atributos, pose y tiempo para inspección y comparación con IFC, pero exige controlar memoria, retraso, corrupción y reordenamiento.

Pipeline LiDAR web en cinco etapas desde el sensor y filtrado edge hasta transporte binario, buffer de dos o tres frames y superposición con IFC — El edge normaliza y filtra; el navegador valida y conserva únicamente frames acotados.

Prueba el replay temporal IFC + LiDAR

Pabellón de operaciones — LiDAR temporal simulado

Escaneo simulado de 16 segundos a 12 FPS alineado con un IFC4. Demuestra el pipeline; no representa un sensor físico.

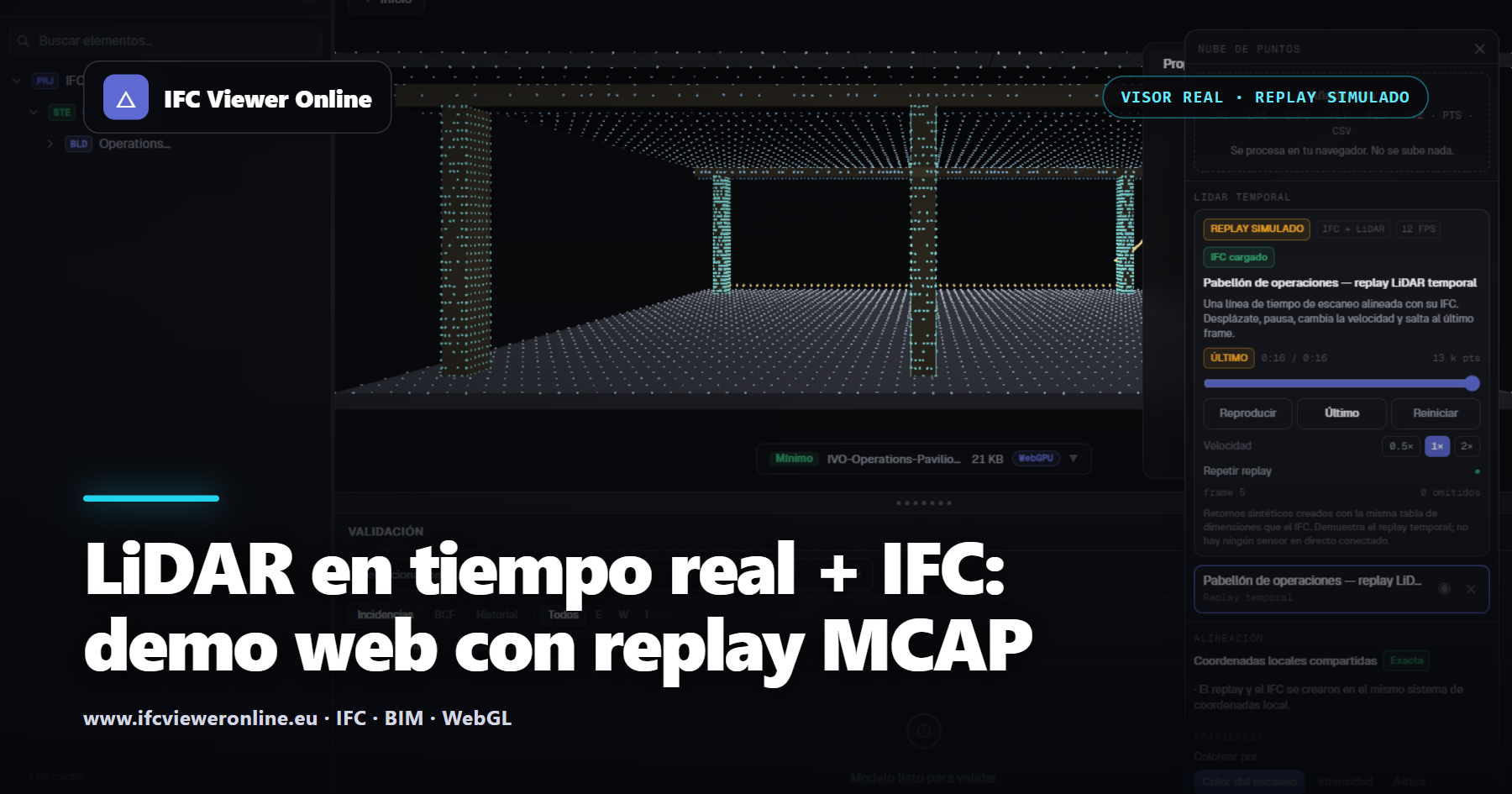

Interfaz real de IFC Viewer Online mostrando el replay LiDAR temporal simulado y alineado con el IFC del pabellón — LiDAR simulado en reproducción — arrastra para orbitar

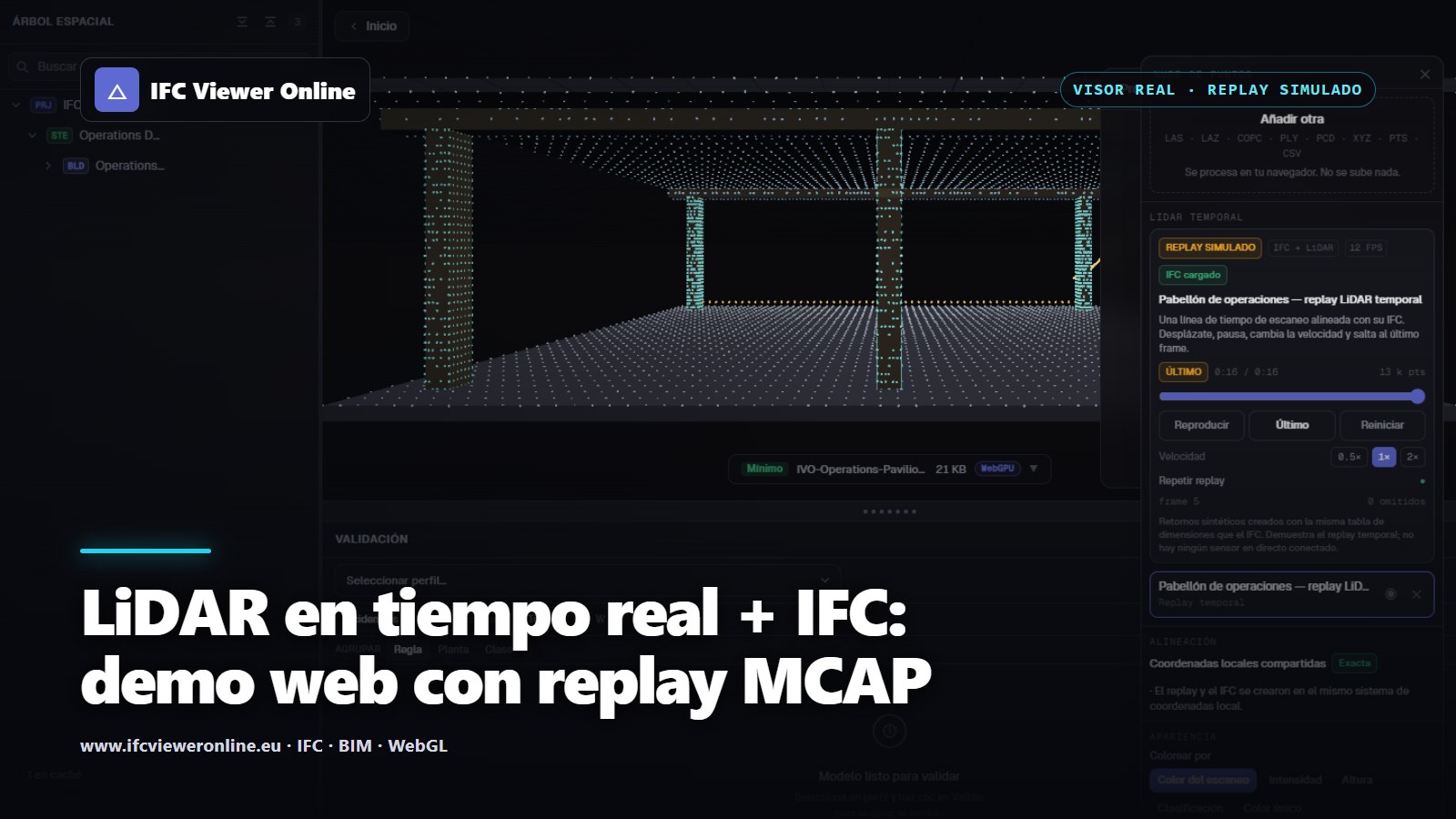

IFC Viewer Online mostrando un escaneo LiDAR temporal simulado sobre el IFC del pabellón con telemetría de replay y alineación — Captura real del producto: la fuente temporal es simulada y determinista; parser, buffer, actualización GPU y alineación IFC funcionan en el visor real.

Contrato mínimo del frame

Campo	Función	Problema detectado
sequence	Identidad monotónica	Pérdida, duplicado o reorder
timestampNs	Referencia temporal común	Desfase con vídeo o pose
origin + bounds	Precisión local y culling	Jitter o reserva absurda
pointCount + stride	Presupuesto del payload	Paquete truncado o malicioso
flags	Semántica explícita	RGB, intensidad o clase inventados
CRC32	Integridad	Corrupción

Backpressure: gana el frame válido más nuevo

Si llegan frames cada 80 ms y decodificar tarda 120 ms, una cola normal crece indefinidamente. El visor termina mostrando el pasado aunque la conexión siga activa. El enfoque vivo conserva dos o tres slots reutilizables, descarta trabajo obsoleto y muestra edad, pérdidas, inválidos y reconexiones.

MCAP para grabar antes de conectar hardware

MCAP es un contenedor modular para mensajes pub/sub con timestamp y serialización arbitraria. Sus chunks e índices permiten buscar por tiempo y topic; consulta la especificación oficial de MCAP.

Compatibilidad de contenedor no significa compatibilidad de mensaje. ROS sensor_msgs/PointCloud2 y Foxglove PointCloud requieren adaptadores definidos.

Para contexto estático vuelve al flujo Scan-to-BIM con IFC y nube. Para recursos comprimidos en píxeles, consulta IFC + vídeo sobre terreno 3D.
