Digital Twins · 2026-08-27 · 8 min

Tunnel Inspection Digital Twin: IFC + Mobile LiDAR Replay

Move an inspection trolley through dense services, visualize its scan fan and localize a changing wall-condition cluster in the IFC corridor.

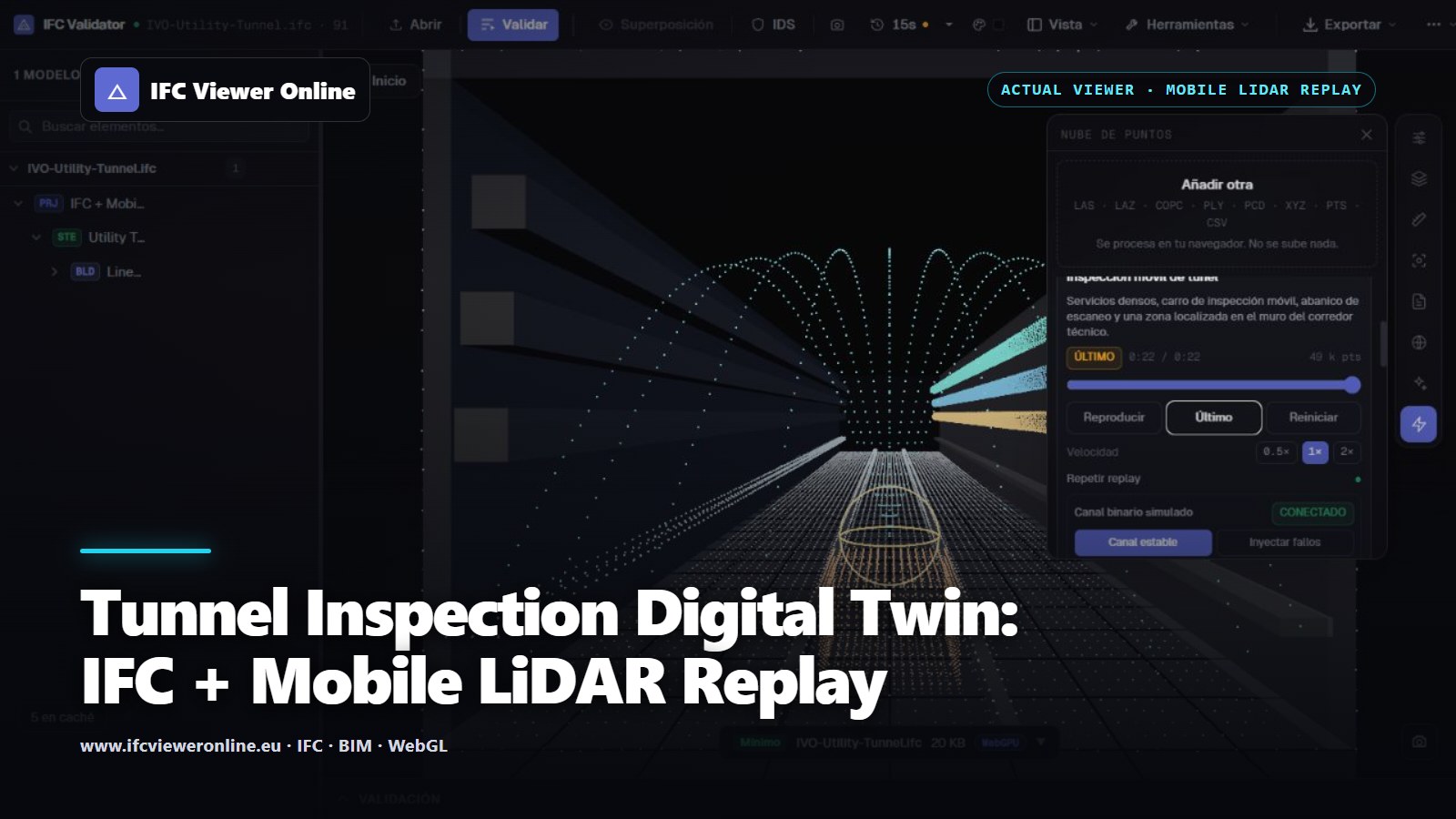

Actual IFC Viewer Online utility tunnel with dense service points, moving inspection trolley, cyan scan fan and localized red wall-condition returns

Linear infrastructure is difficult to explain with isolated photos. A defect image may show moisture or deformation, but not which wall segment, service crossing or chainage the evidence belongs to. A mobile point-cloud replay preserves the geometry around the observation while IFC keeps the corridor assets identifiable.

The demo combines dense envelope and service returns with a moving inspection trolley, a cyan scan fan and a localized red wall-condition cluster. Everything temporal is synthetic and clearly labelled. It exists to exercise the viewer and give exhibitors a repeatable story without claiming a live device connection.

Inspect the utility tunnel live

Utility tunnel — IFC + mobile LiDAR

Interactive 22-second replay with roughly 49,000 visible points, a moving trolley, scan fan and localized wall-condition cluster.

Actual product interface showing the mobile LiDAR trolley and scan fan inside the matching IFC utility tunnel — Inspection replay is running — follow the trolley

A useful inspection scene answers three questions

Where is the observation in the asset coordinate system?
What surrounding geometry and IFC objects give it context?
What is measured evidence, what is an algorithmic result and what is an annotation?

Those questions are why the replay does not replace points with a rendered MP4. Video is excellent for texture and narrative, but a point frame still lets the user change viewpoint, query attributes and compare the observation with the model.

Download the tunnel pair

Use the utility tunnel IFC4 model and the representative mobile LiDAR PLY to test alignment and point styling. Start the live example or export MCAP for movement.

Browser responsibility	Edge responsibility	Project responsibility
Validate packet, bound memory, render, inspect and report status	Synchronize pose, filter/voxelize, normalize attributes and compress	Define asset frame, control, tolerances, retention and review workflow
Show source truth and uncertainty	Drop corrupt or stale frames	Decide what creates an issue or work order

Performance in a long, repetitive corridor

The static service catalogue is created once. Only the trolley, rings, fan and condition patch are rewritten per frame, below a fixed 51,134-point capacity. The viewer draws within its global point budget and can pause, seek or jump to the latest frame without accumulating historical geometry.
